Applications

Shaft liner in renovation projects

Air inlet & ventilation systems

Flue system for condensing heaters and boilers

Chimney renovation


Advantages

Stress free thermal expansion

Can be connected to system MF

High quality stainless steel system

High temperature silicone sealing ring

Universal application

Light weight system

Chimney fire resistant


Fuel Type:                        Oil/wood/coal/pellets normal (wood)

Sealant:                            To be removed before installation, as well as the cap and door seals.


ME RANGE

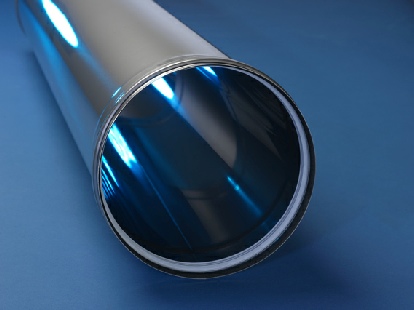

SINGLE SKIN PRODUCT

*SUITABLE FOR CONDENSING APPLIANCES

Inner Diameter (mm)

80

100

113

130

150

180

200

250

300

350

400

450

500

Cross Section (cm)

50

79

100

133

177

254

314

491

707

962

1256

1590

1963

Weight (kg/m)

1.5

1.5

2

2


3

3

4

4

5

5.5

6

7

EMAIL: sales@sigram.co.uk

HEAD OFFICE: 0161 682 1999

CLICK HERE TO VIEW OR DOWNLOAD OUR ME CATALOGUE

* ON CONDENSING APPLICATIONS THE SYSTEM MUST BE FITTED WITH A MINIMUM 3 DEGREE SLOPE BACK TO THE APPLIANCE/S   (REFER TO CATALOGUE)

2.5

LARGER SIZES AVAILABLE

UPON REQUEST

Technical characteristics

Chimney/Flue system/Connecting flue

Dry/wet

Positive/negative pressure

5000 Pa

600 C (N)

200 C (P)

1000 C (N)

200 C (P)

AISI 316L/EN 1.4404

up to 600: 0.6 mm


Gas/pellets normal (wood)

Elastomer

Application:

Operating Mode:

Pressure :

Max. working pressure:

Operating temperature:


Max. temperature allowed:


Material

- Thickness


Fuel Type:

Sealant:
