Applications

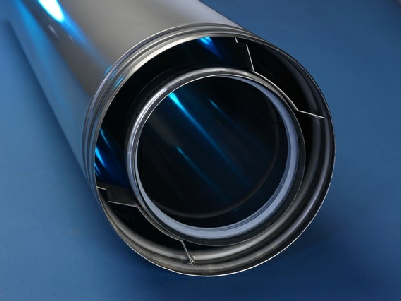

Concentric flue-system for balanced flue/direct vent gas-

   fired boilers

Combined flue-system and air inlet for heating room


Advantages

Boiler adaptors are being manufactured on specification

Durable system due to extra beads

Easy assembly; lightweight elements

Wide product range offers solutions for virtually all situations

Fully welded system

Sealing rings pre-mounted in every product

- Horizontal and vertical terminals

UK RANGE

Technical characteristics

EMAIL: sales@sigram.co.uk

HEAD OFFICE: 0161 682 1999

Inner Diameter (mm)

80

100

Outer Diameter (mm)

125

150

Cross Section (cm)

70

98

Weight (kg/m)


2.6

CLICK HERE TO VIEW OR DOWNLOAD OUR UK CATALOGUE

2.1

Application:

Operating Mode:

Pressure:

Max. working pressure:

Operating temperature:

Max. temperature allowed:

Inner wall:

- Material

- Thickness

Outer wall:

- Material

- Thickness

Sealant:

Fuel Type:

Balanced flue/direct vent

Dry/wet

Negative/positive pressure

200 Pa

200 C

200 C


AISI 316L/EN 1.4404

0.4 mm


AISI 304/EN 1.4301

0.4 mm

Elastomer

Oil/natural gas/calor gas/propane gas
