AD RANGE


Applications

· Gas/Diesel engines

· (Emergency)power gensets

· Uninterrupted Power Supply (UPS)

· Industrial processes


Advantages

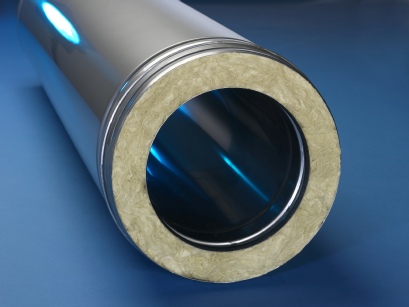

· Inner and outer wall from high quality stainless steel

· No thermal bridges; better heat protection

· Stress free thermal expansion

· Fast and simple installation

· High quality insulation uninterrupted from base plate

  to top stub

projectad.pdf

Technical characteristics

EMAIL: sales@sigram.co.uk

HEAD OFFICE: 0161 682 1999

Inner Diameter (mm)

130

150

180

200

250

300

350

400

450

Outer Diameter (mm)

205

225

255

275

325

375

425

475

525

Cross Section (cm²)

133

177

254

314

491

707

962

1257

1590

Weight (kg/m)


8

10

11


15.5

18.5

22

23.5

CLICK HERE TO VIEW OR DOWNLOAD OUR AD CATALOGUE

7.5

12.5

Flue System

Dry

Positive/negative pressure

5000 Pa

600 °C

1000 °C


AISI 316L/EN 1.4404

Ø 130 - Ø 400: 0.5 mm

Ø 450 - Ø 700: 0.6 mm


AISI 304/EN 1.4301

Ø 130 - Ø 400: 0.5 mm

Ø 450 - Ø 700: 0.6 mm

Mineral wool

Ø 130 - Ø 600

37.5 mm


Elastomer

Gas/diesel/oil

Application:

Operating Mode:

Pressure :

Max. working pressure:

Operating temperature:

Max. temperature allowed:

Inner wall

- Material

- Thickness


Outer wall

- Material

- Thickness


Insulation

- Type

- Thickness


Sealant:

Fuel Type:
